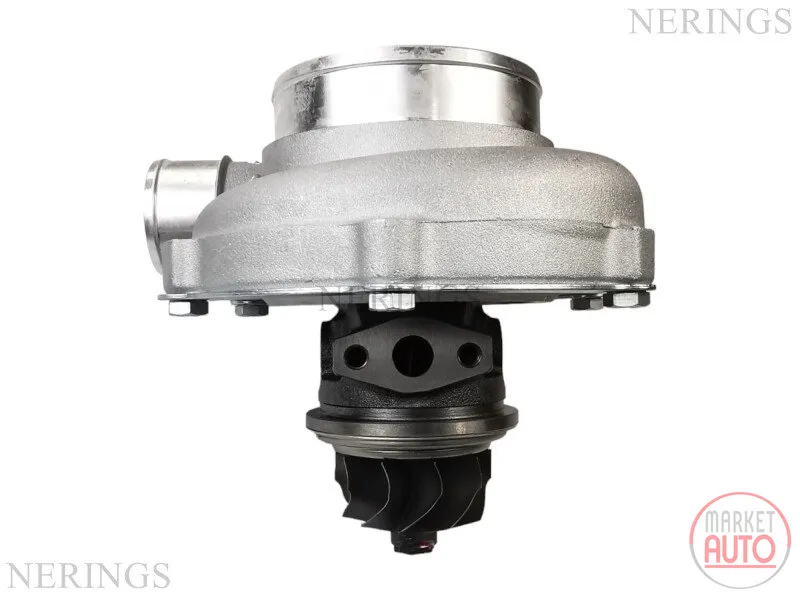

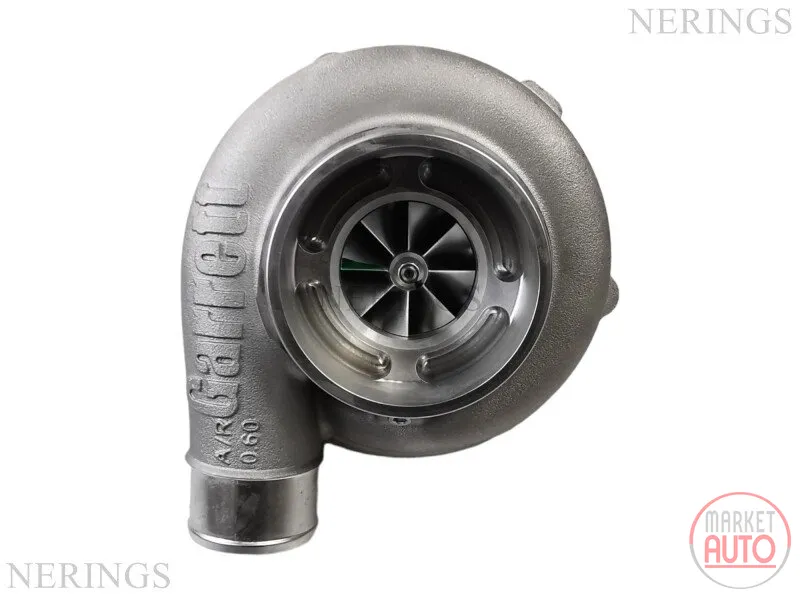

Turbocharger GTX3071R Gen2 new Garrett original- CHGT

Garrett GTX series turbochargers are specially designed for enthusiasts who want optimal performance. The forged fullymachined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response.Ported shroud compressor housings increase surge resistance and provide reliable continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.

Technical characteristics 8446215003S GTX3071R Gen2 Super Core:

Power: 340 650 HP
Volume: 1.8 3.0L

Standard rotation

Compressor side: TRIM 58 A/R 0.60Reverse

Compressor Air Inlet: Hose 4.00" 101.60mm

Compressor Air Outlet: Hose 2.00" 50.80mm

Turbine side: TRIM 84Reverse

Bearing housing: water and oil cooling system

Gen2 aerodynamics have increased horsepower range

New compressor body aesthetics

Integrated speed sensor port

Excludes actuator and turbine housing
